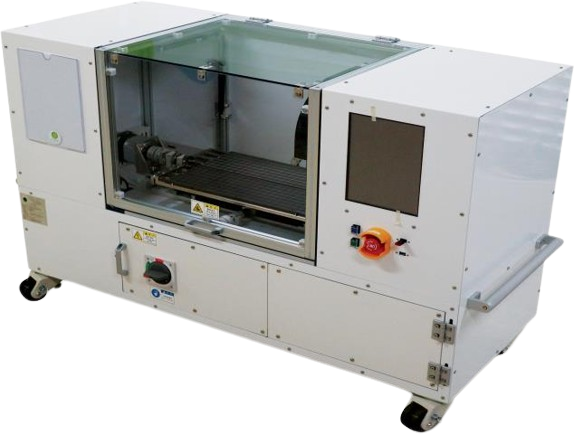

(주)쌤토스 / F1-2S

제품 규격 개요

Items	Description
Apperance	Type	Flat
	Dimension	1450(W) x 600(D) x 1000(H) mm
	Monitor	12inch Touch (Language is English.)
	USB	2 port USB
	Weight	200kg
	Material	AL Profile,, SPC Cover
Sample	Maximum sample width	300mm
	Minimum sample length	440mm
	Maximum sample thickness	5mm
	Mass	Less 1kg
	Option	Customizing for Others (MOCK-UP, another sample…)
Folding	Folding Form	Dynamic Inner Folding, Static
	Motion	Motorized
	Number of Times	1000000 times
	R Set	1~10.0R
	Folding Angle	0~180degree
	Folding Speed	Maximum. 1sec/cycle (10mm / s can be set) Minimum. 5sec/cycle (10mm / s can be set)
	WaitTime	Max. 86400sec (Each of unfolded and folded state.)
Electical	Power	AC 220V 1Φ 50/60Hz
Electical	Main Braker Capacity	15A
Safety	EMO Switch
Safety	Safety Door	Interlock
